Instrumental steels for coatings

Product descriptions

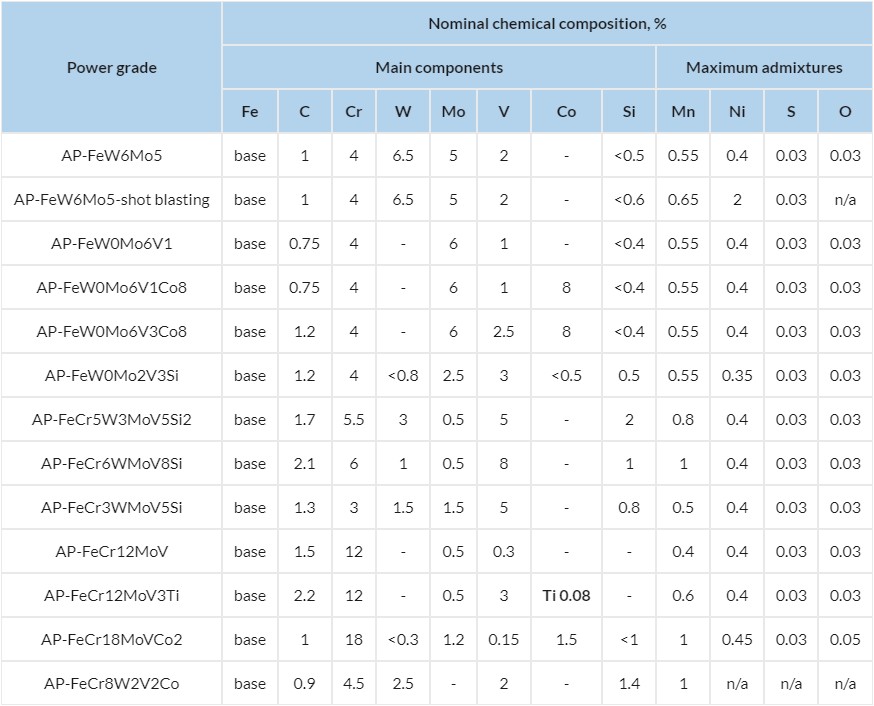

Instrumental steels for coatings
Power grade Nominal chemical composition, %
Main components Maximum admixtures
Fe C Cr W Mo V Co Si Mn Ni S O
AP-FeW6Mo5 base 1 4 6.5 5 2 - <0.5 0.55 0.4 0.03 0.03
AP-FeW6Mo5-shot blasting base 1 4 6.5 5 2 - <0.6 0.65 2 0.03 n/a
AP-FeW0Mo6V1 base 0.75 4 - 6 1 - <0.4 0.55 0.4 0.03 0.03
AP-FeW0Mo6V1Co8 base 0.75 4 - 6 1 8 <0.4 0.55 0.4 0.03 0.03
AP-FeW0Mo6V3Co8 base 1.2 4 - 6 2.5 8 <0.4 0.55 0.4 0.03 0.03
AP-FeW0Mo2V3Si base 1.2 4 <0.8 2.5 3 <0.5 0.5 0.55 0.35 0.03 0.03
AP-FeCr5W3MoV5Si2 base 1.7 5.5 3 0.5 5 - 2 0.8 0.4 0.03 0.03
AP-FeCr6WMoV8Si base 2.1 6 1 0.5 8 - 1 1 0.4 0.03 0.03
AP-FeCr3WMoV5Si base 1.3 3 1.5 1.5 5 - 0.8 0.5 0.4 0.03 0.03
AP-FeCr12MoV base 1.5 12 - 0.5 0.3 - - 0.4 0.4 0.03 0.03
AP-FeCr12MoV3Ti base 2.2 12 - 0.5 3 Ti 0.08 - 0.6 0.4 0.03 0.03
AP-FeCr18MoVCo2 base 1 18 <0.3 1.2 0.15 1.5 <1 1 0.45 0.03 0.05
AP-FeCr8W2V2Co base 0.9 4.5 2.5 - 2 - 1.4 1 n/a n/a n/a

AP – Atomized Powder

High Steel Powders:

AP-FeW6Mo5, AP-FeMo6V1, AP-FeMo6V1Co8, AP-FeMo6V3Co8, AP-FeMo2V3Si. AP-FeW6Mo5-b is for bead-blasting treatment, microhardness is ≥400 HV 0.05 /5 (acc. to specification); 750-1000 HV (factual).

Die Steel Powders:

AP-FeCr5W3MoV5Si2, AP-FeCr6WMoV8Si, AP-FeCr3WMoV5Si, AP-FeCr12MoV, AP-FeCr12MoV3Ti AP-FeCr18MoVCo2, AP-FeCr8W2V2Co
