Aluminum-titanium, Chromium, Aluminum-chromium sputtering targets, Evaporable cathodes

Product descriptions

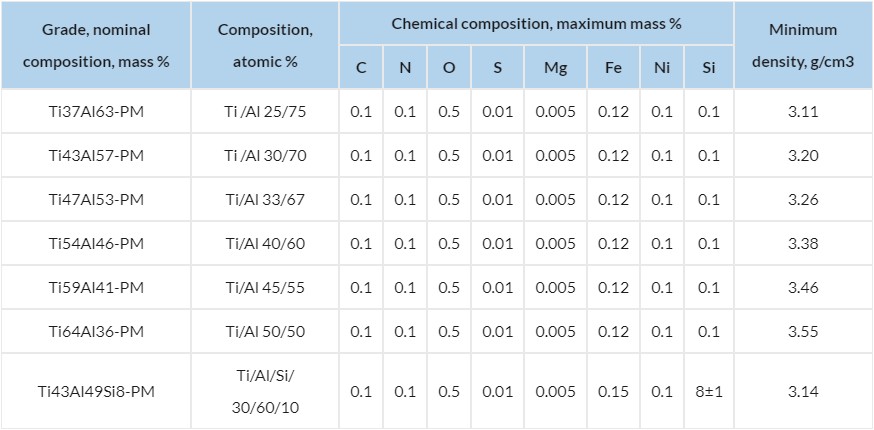

Grade, nominal composition, mass % Composition, atomic % Chemical composition, maximum mass % Minimum density, g/cm3
C N O S Mg Fe Ni Si
Ti37Al63-PM Ti /Al 25/75 0.1 0.1 0.5 0.01 0.005 0.12 0.1 0.1 3.11
Ti43Al57-PM Ti /Al 30/70 0.1 0.1 0.5 0.01 0.005 0.12 0.1 0.1 3.20
Ti47Al53-PM Ti/Al 33/67 0.1 0.1 0.5 0.01 0.005 0.12 0.1 0.1 3.26
Ti54Al46-PM Ti/Al 40/60 0.1 0.1 0.5 0.01 0.005 0.12 0.1 0.1 3.38
Ti59Al41-PM Ti/Al 45/55 0.1 0.1 0.5 0.01 0.005 0.12 0.1 0.1 3.46
Ti64Al36-PM Ti/Al 50/50 0.1 0.1 0.5 0.01 0.005 0.12 0.1 0.1 3.55
Ti43Al49Si8-PM Ti/Al/Si/ 30/60/10 0.1 0.1 0.5 0.01 0.005 0.15 0.1 8±1 3.14
Aluminum-titanium, Chromium, Aluminum-chromium sputtering targets, Evaporable cathodes

Product form and dimensions

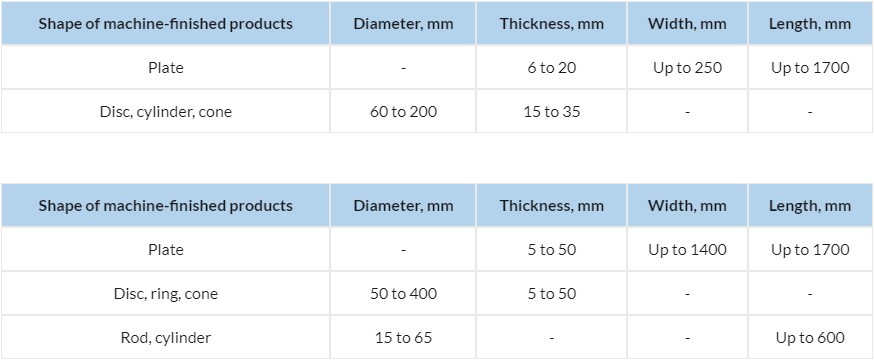

Shape of machine-finished products Diameter, mm Thickness, mm Width, mm Length, mm
Plate - 6 to 20 Up to 250 Up to 1700
Disc, cylinder, cone 60 to 200 15 to 35 - -
Aluminum-titanium, Chromium, Aluminum-chromium sputtering targets, Evaporable cathodes
Shape of machine-finished products Diameter, mm Thickness, mm Width, mm Length, mm
Plate - 5 to 50 Up to 1400 Up to 1700
Disc, ring, cone 50 to 400 5 to 50 - -
Rod, cylinder 15 to 65 - - Up to 600
