Molybdenum sheets, plates

Product descriptions

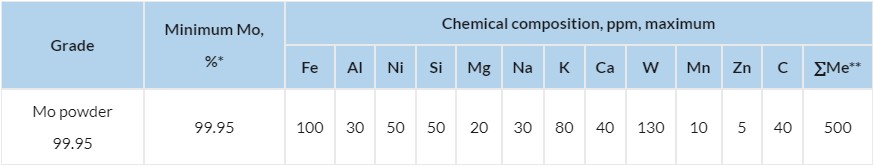

Guaranteed chemical composition of Mo powder 99.95 molybdenum powder

Molybdenum sheets, plates
Grade Minimum Mo, %* Chemical composition, ppm, maximum
Fe Al Ni Si Mg Na K Ca W Mn Zn C ∑Me**
Mo powder 99.95 99.95 100 30 50 50 20 30 80 40 130 10 5 40 500

Guaranteed chemical composition of Mo powder 99.95 molybdenum powder

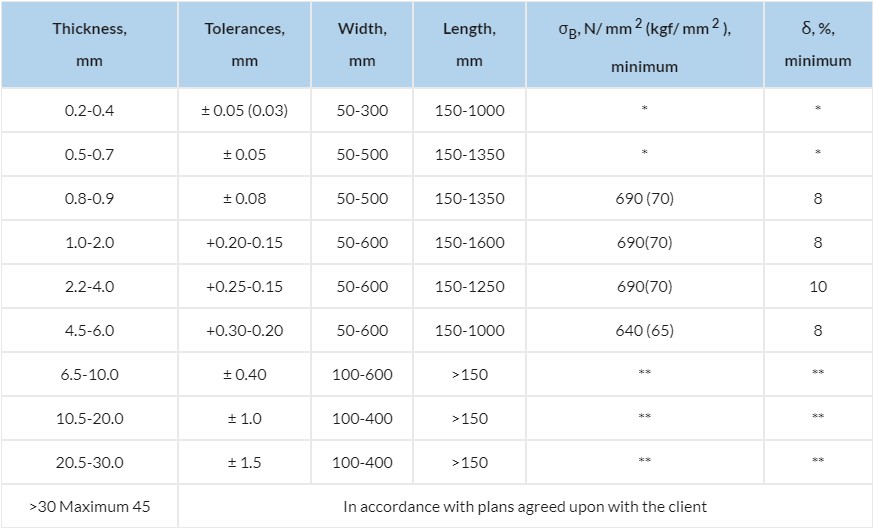

Molybdenum sheets, plates
Thickness,
mm		 Tolerances,
mm		 Width,
mm		 Length,
mm		 σB, N/ mm 2 (kgf/ mm 2 ),
minimum		 δ, %,
minimum
0.2-0.4 ± 0.05 (0.03) 50-300 150-1000 * *
0.5-0.7 ± 0.05 50-500 150-1350 * *
0.8-0.9 ± 0.08 50-500 150-1350 690 (70) 8
1.0-2.0 +0.20-0.15 50-600 150-1600 690(70) 8
2.2-4.0 +0.25-0.15 50-600 150-1250 690(70) 10
4.5-6.0 +0.30-0.20 50-600 150-1000 640 (65) 8
6.5-10.0 ± 0.40 100-600 >150 ** **
10.5-20.0 ± 1.0 100-400 >150 ** **
20.5-30.0 ± 1.5 100-400 >150 ** **
>30 Maximum 45 In accordance with plans agreed upon with the client

Chemical composition Mo99.95-PM.

High-quality raw materials – molybdenum powder with a purity of Mo 99.95-99.98% - are used to make the sintered semifinished products from which sheets are produced.

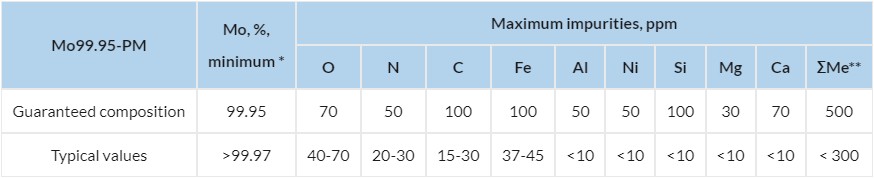

Chemical composition of Mo99.95-PM rolled stock

Molybdenum sheets, plates
Mo99.95-PM Mo, %,
minimum *		 Maximum impurities, ppm
O N C Fe Al Ni Si Mg Ca ΣMe**
Guaranteed composition 99.95 70 50 100 100 50 50 100 30 70 500
Typical values >99.97 40-70 20-30 15-30 37-45 <10 <10 <10 <10 <10 < 300

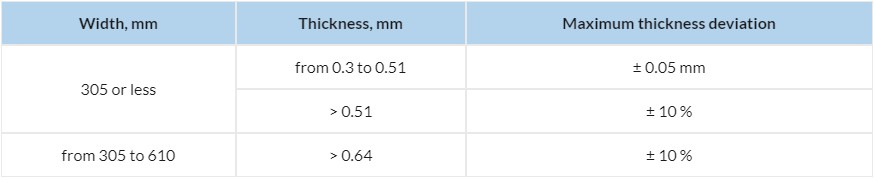

Maximum deviations for thickness of Mo99.95-PM grade rolled stock

Molybdenum sheets, plates
Width, mm Thickness, mm Maximum thickness deviation
305 or less from 0.3 to 0.51 ± 0.05 mm
> 0.51 ± 10 %
from 305 to 610 > 0.64 ± 10 %
